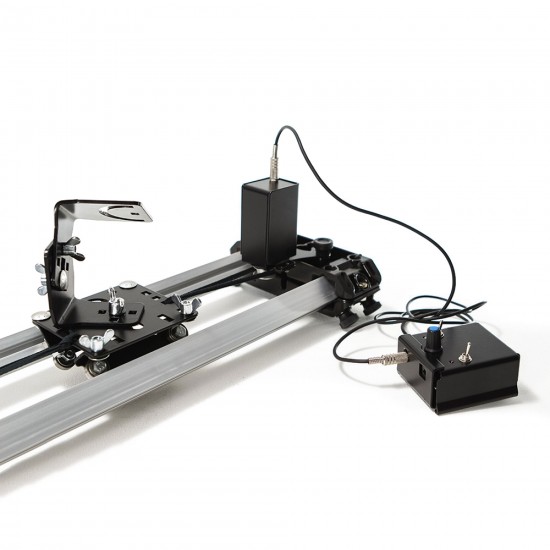

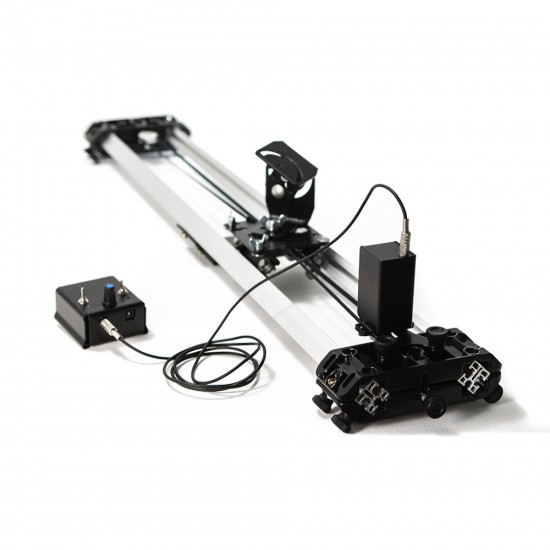

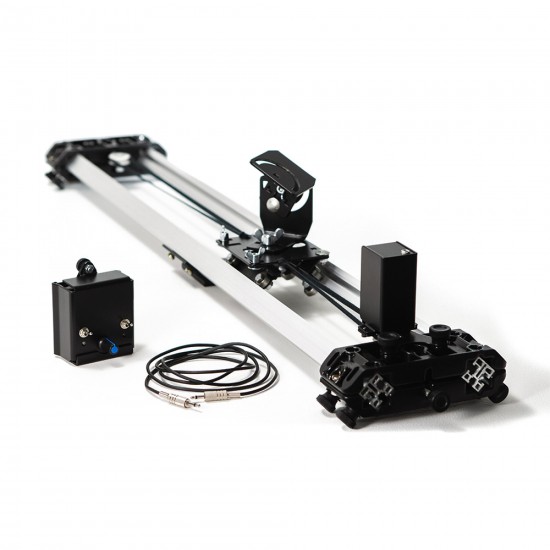

BIRAIL 100 + MULTI RAIL TROLLEY + MOTORMOVIE = MOTORIZED SLIDERAnother existing configuration of the ALHVA rail system for camera movements, the Control Kit 100.

Control Kit 100

BIRAIL 100 + MULTI RAIL TROLLEY + MOTORMOVIE = MOTORIZED SLIDER

Another existing configuration of the ALHVA rail system , for camera movements, the Control Kit 100.

This assembly results in a portable and robust equipment, full of unexpected features, ideal for use with DLSR cameras and small camcorders.

All components have mobility, so that the camera, the cart and the rail can be used in the most varied angles, in different types of support.

Whether on the floor, leaning against the wall, on tables, with 2 tripods, or only on 1 tripod, if you include 1 optional center support.

The MULTI-RAIL cart with articulating support for camera positioning, which equip this kit, are detachable, detachable and adjustable.

The trolley can be mounted to run on the inside or outside of the BITRAIL.

It is also possible to have a cart running inside the track and another one running outside at the same time, for use in a vertical position with the help of a counterweight mechanism.

In all situations you can control the pressure and precision of the slide with agility.

The bipartite articulator has great clamping force in tilt and pan variations for up to 2.5 kg of load, while the trolley and BITRILHO can operate with up to 7 KG.

Add MOTORMOVIE to this range of possibilities and have electric speed and steering control, with total driving uniformity in addition to precision in case of scene repetitions.

This combination of motor and control box is compact, works with 4 batteries, and is capable of transporting up to 10 kg when the rail is in the horizontal position.

Simple in its concept, simple in use and can be installed on any slider of any brand even if you have little ability to adapt.

Inspired by educational didactics en contracted in robotics concepts, in the best and simplest of the do-it-yourself style, the KIT can be transformed, for a longer route, for a monorail, or even have its parts used for assembly of lighting grids and movement quadrants.

It's more than a SLIDER, it's creative possibilities, which will be at your fingertips when the scene requires engineering not found in the market.

ALHVA LEGAL PARTS economical, fun and smart.

BITRAIL 100

It is a powerful structure, to be used as a SLIDER, it uses only two types of parts, the LEGAL TUBE and the LINK made of polycarbonate, in addition to fastening elements such as nuts and screws.

100 % removable, its components can be used for other purposes.

Fully compatible with all sliders from previous collections, parts from TWIDDLE PARTS and ALHVA LEGAL PARTS.

Easy to install on any type of tripod, or even in one case you have an optional center stand for this.

Made for those who need a more stable filming rail for heavier machines up to 7 kg.

Works perfectly with TWDDLE or with the MULTI-RAIL trolley.

And there are auxiliary holes in the LINK for installing MOTORMOVIE

Materials

• Aluminium
• Polycarbonate
• Iron (screws)

Measurements

• 100 cm long
• 17 cm wide
• 7 cm high

Weight

1850 grams

MULTI-RAIL TROLLEY

No limits.

The Multi -rails is more than a slider cart.

It is a system to build carts that slide through any type of round or square tube made of metal or plastic.

Everything is simple and functional, both the handling and the understanding of the possibilities of constructions of trolleys from the most compact to modules for large load capacity.

Very stable and sliding, on this cart you can also control the pressure of the wheels next to the rails until it doesn't have any slack, transmitting a lot of confidence in shots with camera movement and walking along the rail at the same time.

The perforated base plate has an oblong slot for greater variety in the positioning of the heads, which favors balance.

It is completely detachable and small to always be in your filming bag, in case you paint an improvised with alternative or disposable PVC tubes, or a flat surface with a table.

It comes with a bipartite L-shaped articulator with different faces, but with compatible drilling, which has a strong clamping capacity. to ensure firmness in the positioning of the equipment while rolling.

It does not require maintenance, contains spare parts in case of accidents and composition in cases of creativity.

Technical Specifications:

• Compatible with any type the round and square rail.
• Friendly.
• Adjustable.
• Dismountable.
• 100% metal.
• Accompanies articulator for camera positioning.
• 2 bases with oblong slot and auxiliary holes.
• Spare parts and composition.
• Constructivist and functional design.
• Ready to use.
• 5 year warranty

Materials

• 100% metal

Weight

With articulator and spare base plate 950 grams

Cart measurements

• Small base - 10 cm x10 cm x 6 cm high
• Large Brase - 10 cm x 15 cm x 6 cm high

Contains

• 1 - Cart - with 2 bearing supports and 2 plates mounting base sizes P and G
• 1 - Split articulator
• 1 - Round washer
• 1 - Screw set

MOTORMOVIE

MOTORMOVIE is a combined engine and control box for you to control electrically control the direction and speed of any ALHVA slider from the first models to the current ones.

And if you have some adaptation skills you can use it on other sliders from other brands.

It's compact, works with 4 batteries, easy to install, and delivers a homogeneous movement in the capture of your images.

It's the missing accessory to give more precision to our constructivist system of filming rails.

Materials

• Electric motor
• Metallic boxes
• Electronic circuit board
• Metallic cables and connectors
• Plastics
• Screws
• Aluminium

Measurements and functions of the control box

• Length – 10 cm
• Width – 7 cm
• Height – 3.4 cm
• Weight without battery – 260 grams
• On/off switch
• Turn switch
• Rotary knob for speed control
• Battery power
• Batteries are not included

Motor sizes and capacities

• Length with pulley - 8 cm
• Each side of the cube – 3.5 cm
• Fixing tab width – 6 cm
• Weight – 395 grams
• RPM 44 RPM
• Voltage 6 V
• Torque 0.22 Kgf.cm
• Battery power

Tips

Use quality alkaline or rechargeable batteries

Using MOTORMOVIE on the slider in a horizontal position allows a load of up to 10 kg

The use of MOTORMOVIE on the slider in an inclined or vertical position, may require the use of a counterweight system, so as not to force the limit of the motor's capacity, and to avoid slippage of the tape used as a transmission belt

Contains

• A Control Box with battery holder
• A low speed motor with aluminum pulley
• L of m support etal with nylon pulley
• Connecting cable of 1.5 meters.

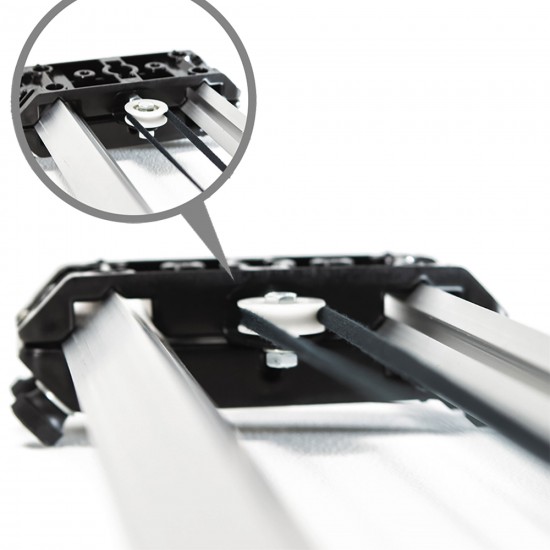

• 1 polyester tape 2.2 meters for transmission belt
• Screws and nuts for installation on Alheva's sliders.
