MotorMovie

MotorMovie

Precision with simplicity. MOTORMOVIE is a combination of motor and control box for you to electrically control the direction and speed of any ALHVA slider from the first models to the current ones.

MOTORMOVIE is a combination of motor and control box for you to electrically control the direction and the speed of
any ALHVA slider from the first models to the current ones.And if you have any skills with adaptations you can use it in other sliders of other brands.
It is compact, works with 4 batteries, easy to install, and delivers a homogeneous movement in the capture of your images.

It's the missing accessory to give more precision to our constructivist filming rail system.

Materials

• Electric motor
• Metallic housings
• Electronic circuit board
• Metallic cables and connectors
• Plastics
• Screws
• Aluminium.

Measurements and functions of the control box

• Length: 10 cm
• Width: 7 cm
• Height: 3.4 cm
• Weight without battery: 260 grams
• On/off switch
• Turn switch
• Rotary knob for speed control
• Turn key for speed control
• li>
• Battery power
• Batteries are not included

Motor dimensions and capacities

• Length with pulley: 8 cm
• Each side of hub: 3.5 cm
• Fixing tab width : 6 cm
• Weight: 395 grams
• RPM: 44 RPM
• Voltage: 6 V
• Torque: 0.22 Kgf. cm
• Battery power

Tips

Use quality alkaline or rechargeable batteries

Using MOTORMOVIE on the slider in horizontal position allows a load of up to 10 kg

Using MOTORMOVIE on the slider in an inclined or vertical position may require the use of a counterweight system so as not to force the engine capacity limit, and avoid the slip of the tape used as a transmission belt

Contains

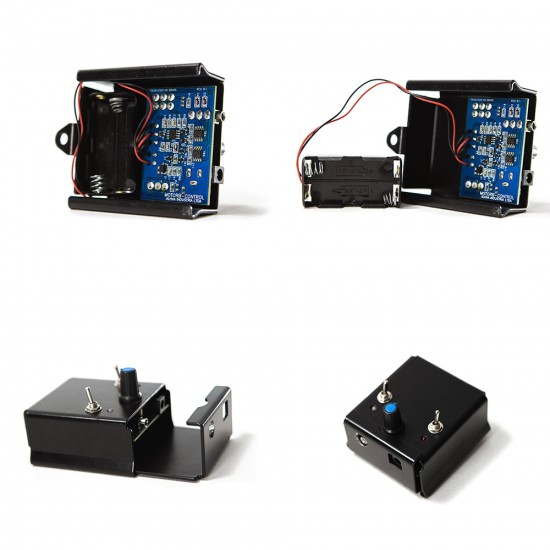

• A Control Box with battery holder
• A low speed motor with aluminum pulley
• Metal L-bracket with nylon pulley
• Connection cable of 1.5 meters.
• 1 ribbon 2.2 meter polyester for transmission belt
• Screws and nuts for installation on Alhva sliders.
